- Measures ambient temperature with 0.5°C accuracy
- Temperature range from -40°C to 125°C
- Output in 0.1°C steps (12bit resolution)
In stock
- SKU
- 216
The price depends on the chosen options
€4.99
Incl. 19% VAT

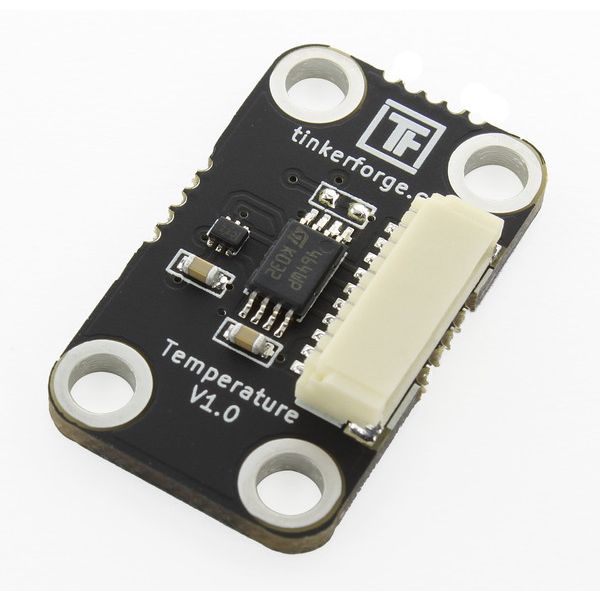

Description / Temperature Bricklet
This Bricklet is deprecated. Is has been replaced by the Temperature Bricklet 2.0. It is currently sold off with a large discount, but only as long as stock lasts.
The Temperature Bricklet can be used to extend the features of Bricks by the capability to measure temperature. The measured temperature can be read out in °C. With configurable events it is possible to react on changing temperatures without polling.
Technical Specifications
| Property | Value |
|---|---|
| Sensor | TMP102 |
| Current Consumption | 1mA |
| Ambient Temperature | -40°C to 125°C in 0.1°C steps (12bit resolution) |
| Accuracy | 0.5°C |
| Dimensions (W x D x H) | 25 x 15 x 5 mm (0.98 x 0.59 x 0.19”) |
| Weight | 2g |
Comes Packaged With
- Temperature Bricklet
- Chosen Bricklet Cable
- Chosen Mounting Kit / Case
