Summary
-
x
Final product price
- Measures dust density between 0 and 500µg/m³
In stock
- SKU
- 260
The price depends on the chosen options
€34.99
Incl. 19% VAT

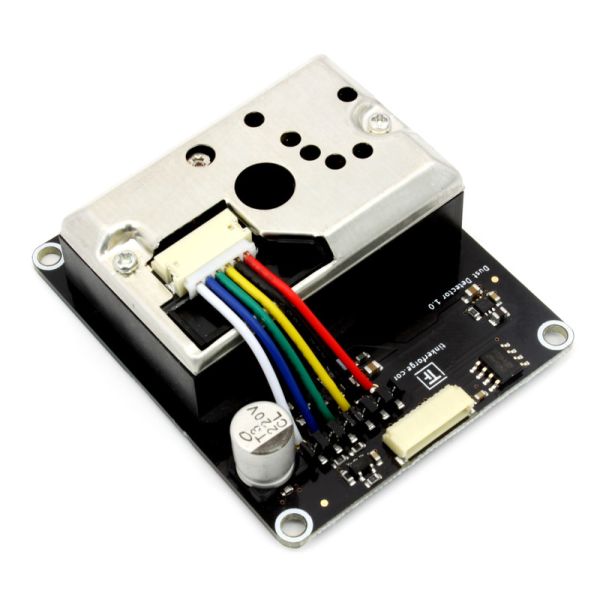

Description / Dust Detector Bricklet
The Dust Detector Bricklet can be used to extend the features of Bricks with the capability to measure dust density. The measured dust density can be read out in µg/m³. With configurable events it is possible to react on changing dust density without polling.
Typical applications are measurements of cigarette smoke, smog, house dust, pollen, etc.
Technical Specifications
| Property | Value |
|---|---|
| Sensor | GP2Y1010AU |
| Current Consumption | 120mW (24mA at 5V) |
| Resolution | 1µg/m³ |
| Measurement Range | 0-500µg/m³ |
| Dimensions (W x D x H) | 60 x 50 x 20mm (2.36 x 1.97 x 0.79") |
| Weight | 26g |
Comes Packaged With
- Dust Detector Bricklet
- Dust Sensor
- Chosen Bricklet Cable
- Chosen Mounting Kit
