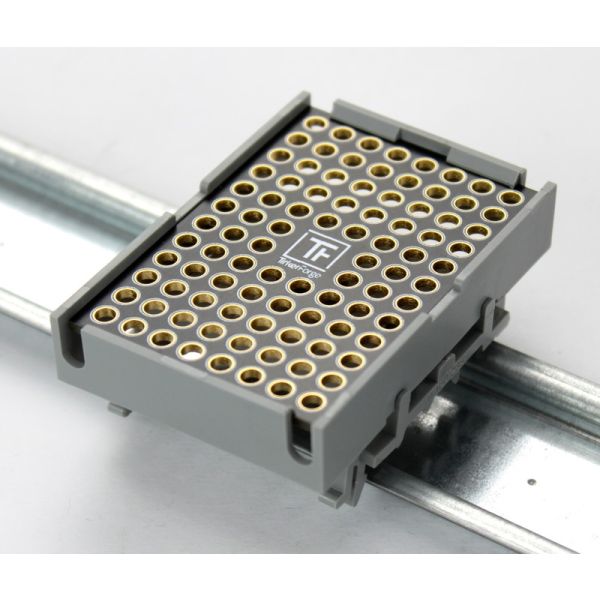

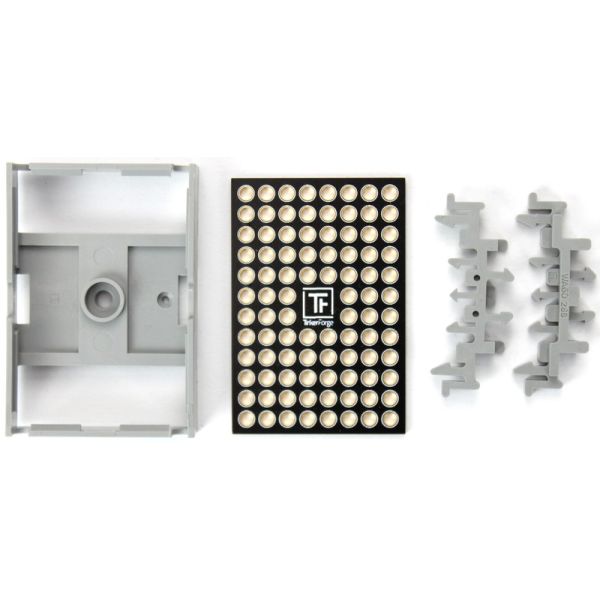

The Rail Mounting Kit can be used to mount Bricks and Bricklets on DIN rails. The kit consists of:

• 1x WAGO 288-001 Mounting Carrier,
• 2x WAGO 288-002 Mounting Foot and
• 1x Mounting Plate 42x62mm.

The Rail Mounting Kit is compatible to the following Bricks:

• DC Brick,
• Debug Brick,
• IMU Brick,
• Master Brick,
• Servo Brick and
• Stepper Brick.

The Rail Mounting Kit is compatible to the following Bricklets:

• Ambient Light Bricklet,
• Analog In Bricklet,
• Analog Out Bricklet,
• Barometer Bricklet,
• Breakout Bricklet,
• GPS Bricklet,
• Humidity Bricklet,
• Industrial Digital In 4 Bricklet,
• Industrial Digital Out 4 Bricklet,
• Industrial Quad Relay Bricklet,
• IO-4 Bricklet,
• Joystick Bricklet,
• Rotary Poti Bricklet,
• Temperature Bricklet,
• Temperature IR Bricklet and
• Voltage/Current Bricklet.

It is possible to mount bigger Bricklets, such as the Dual Relay Bricklet, by using two Rail Mounting Kits side by side.
