Industrial Digital Out 4 Bricklet

Description / Industrial Digital Out 4 Bricklet

This Bricklet is deprecated. Is has been replaced by the Industrial Digital Out 4 Bricklet 2.0. It is currently sold off with a large discount, but only as long as stock lasts.

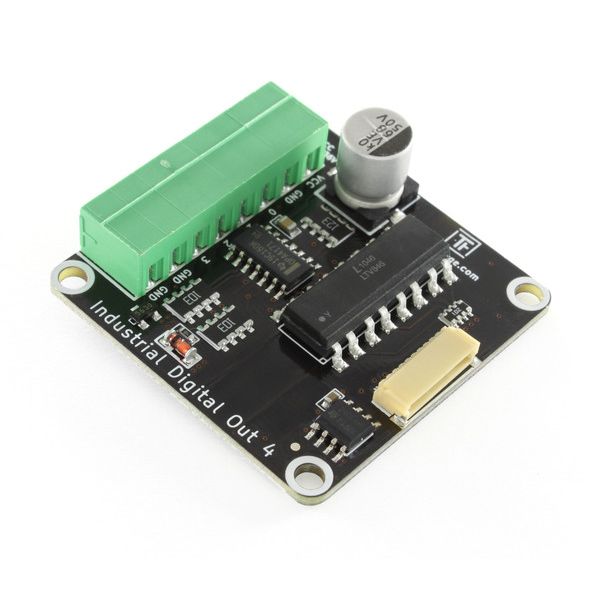

The Industrial Digital Out 4 Bricklet can be used to extend Bricks by four galvanically isolated digital outputs. The outputs have to be supplied externally with a voltage of up to 36 Volt. Output isolation permits the usage without a direct electric connection, such that ground loops can be prevented and an additional degree of safety is added.

Typical applications are the interfacing of industrial controllers, such as PLC's or frequency converters, or the usage in environments were electrical ground levels can not be connected.

If you need more then four outputs, you can add another Industrial Digital Out 4 Bricklet and group these together. If you do this, you have eight outputs which can set simultaneously in contrast to set both Bricklets successively. Grouping is only possible for Bricklets connected to one Brick. Thus you can group up to four Industrial Bricklets on a Master Brick or two on other Bricks.

Technical Specifications

Property	Value
Current Consumption	2mA (per active output pin)

External Voltage Supply	Up to 36V
Output Type	Four operational amplifier outputs
Maximum Output Current	25mA (per output pin)
Isolation	5000Vrms (optocoupler value)

Dimensions (W x D x H)	40 x 40 x 14mm (1.57 x 1.57 x 0.55”)
Weight	10g
