- Precision current sensor, measures currents between 0 and 22.5mA
- Can read out any IEC 60381-1 type 2 and type 3 sensor
- High accuracy (0.15%), resolution (up to 0.172µA) and sample rate (up to 240 SPS)
- It is possible to detect if a sensor is connected/faulty
Out of stock
- SKU
- 228
The price depends on the chosen options
€14.99
Incl. 19% VAT

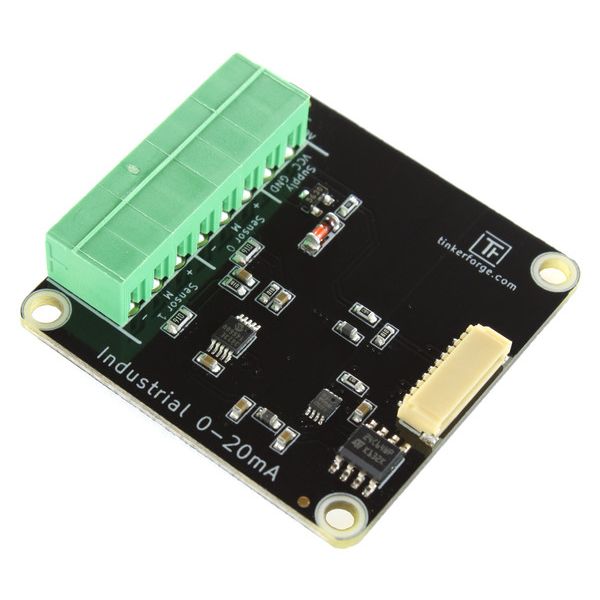

Description / Industrial Dual 0-20mA Bricklet
This Bricklet is deprecated. Is has been replaced by the Industrial Dual 0-20mA Bricklet 2.0. It is currently sold off with a large discount, but only as long as stock lasts.
The Industrial Dual 0-20mA Bricklet can be used to extend the features of Bricks by the capability to measure currents between 0 and 22.5mA.
This Bricklet can be used to read out up to two IEC 60381-1 type 2 and type 3 sensor.
The measured current can be read out in nA. With configurable events it is possible to react on changing currents without polling.
Technical Specifications
| Property | Value |
|---|---|
| Sensor | MCP3423 |
| Current Consumption | 1mA |
| Measurement Range | 0mA - 22.5mA |
| Supported Sensors | IEC 60381-1 type 2 and type 3 |
| Accuracy | 0.15% with 40ppm/°C |
| Resolution | up to 0.172µA (18bit) |
| Sample Rate | up to 240 samples per second |
| Dimensions (W x D x H) | 40 x 40 x 11mm (1.57 x 1.57 x 0.43”) |
| Weight | 8g |
Comes Packaged With
- Industrial Dual 0-20mA Bricklet
- 8 Pole Green Connector
- Chosen Bricklet Cable
- Chosen Mounting Kit / Case
