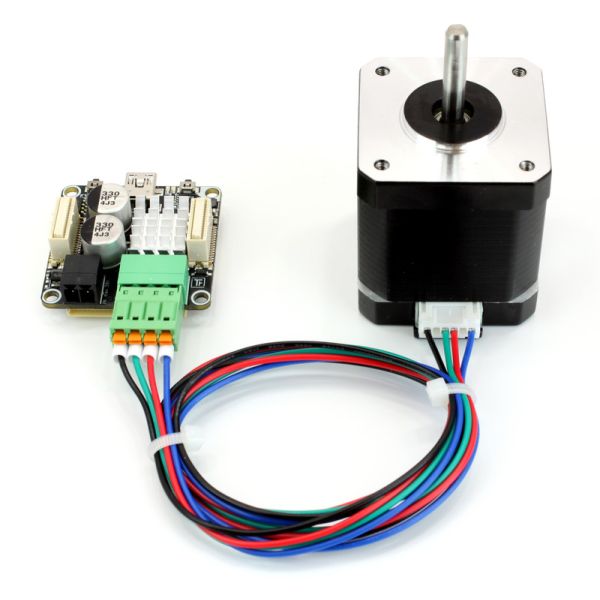

Nema 17 stepper motor with 0.43Nm torque. It can be controlled by the Stepper Brick and Silent Stepper Brick. The detachable cable is included and can be directly connected to the Stepper Brick. The correct way to connect the cable to the Stepper Brick connector can be found in one of the product photos.
In stock
- SKU
- 6118
€29.99
Incl. 19% VAT
Description / Stepper Motor, Nema 17, 0.43Nm
Nema 17 stepper motor with 0.43Nm torque. It can be controlled by the Stepper Brick and Silent Stepper Brick. The detachable cable is included and can be directly connected to the Stepper Brick. The correct way to connect the cable to the Stepper Brick connector can be found in one of the product photos.
The stepper motor is from Osmtec and has the model number 17HS19-0854SX (Datasheet).
Technical Specifications
| Property | Value |
|---|---|
| Torque | 0.43Nm |
| Step Angle | 1.8° |
| Voltage | 5.3V |
| Current | 0.85A |
| Resistance per Phase | 6.2Ω |
| Inductance per Phase | 11mH |
| Inertia | 82gcm² |
| Type | Bipolar |
| Shaft diameter | 5mm |
| Size | Nema 17 |
| Weight | 350g |
Comes Packaged With
- Stepper Motor
- Detachable Cable
