Summary
-
x
Final product price
- Four 7-segment displays with switchable colon
- Brightness of segments configurable
- Configurable counter functionality
In stock
- SKU
- 237
The price depends on the chosen options
€8.98
Incl. 19% VAT

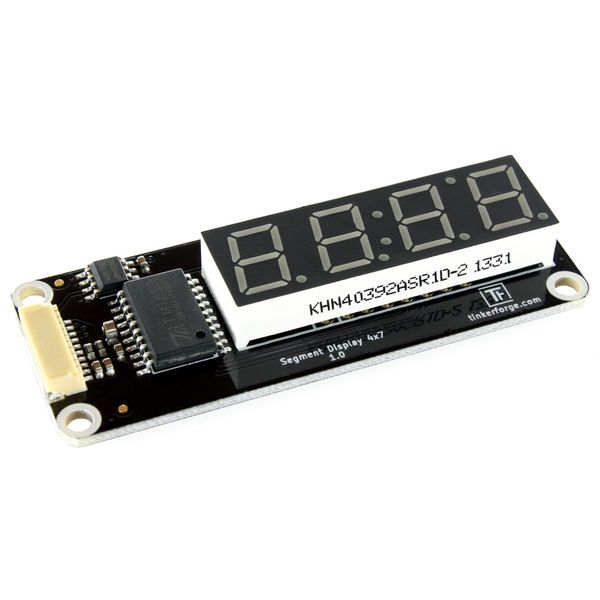

Description / Segment Display 4x7 Bricklet
This Bricklet is deprecated. Is has been replaced by the Segment Display 4x7 Bricklet 2.0. It is currently sold off with a large discount, but only as long as stock lasts.
Das Segment Display 4x7 Bricklet kann genutzt werden um vier 7-Segment-Anzeigen und einen Doppelpunkt über Bricks zu steuern. Jedes der 29 Segmente kann eigenständig geschaltet werden. Es ist zusätzlich möglich die Helligkeit der Segmente einzustellen. Neben der Möglichkeit des Schaltens einzelner Segmente bietet die API auch einen anwender-konfigurierbaren Zähler.
Technical Specifications
| Property | Value |
|---|---|
| Current Consumption | 1mA (all segments off) 6mA (all segments on at minimum brightness) 62mA (all segments on at maximum brightness) |
| Segment Width | 6mm |
| Segment Height | 10mm |
| Brightness of Segments | Configurable, up to 70mcd |
| Dimensions (W x D x H) | 25 x 65 x 9mm (0.98 x 2.56 x 0.35") |
| Weight | 11g |
Comes Packaged With
- Segment Display 4x7 Bricklet
- Chosen Bricklet Cable
- Chosen Mounting Kit / Case
