Final product price
- Black/white OLED
- Size of 1.68cm (0.66") with a resolution of 64x48
In stock
- SKU
- 264
The price depends on the chosen options
€19.99
Incl. 19% VAT

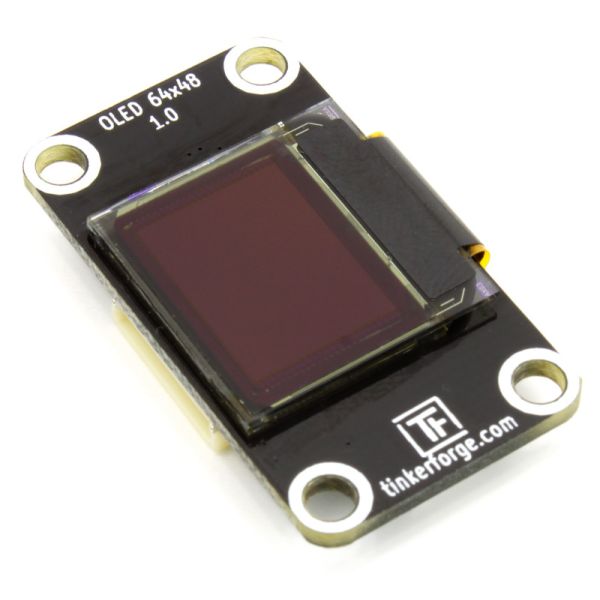

Description / OLED 64x48 Bricklet
The OLED 64x48 Bricklet can be used to extend the features of Bricks with the capability to display information on a small 64x48 OLED display.
Because each pixel can be set individually, the display can do graphics. This allows for more versatile and detailled drawings on the display, compared to the LCD 20x4 Bricklet with its fixed character display.
Additionally, text can easily be drawn onto the display with the embedded font of the Bricklet.
High update rates of up to 100Hz are possible.
A demo with the 128x64 pixel version, a Servo Brick and a Rotary Poti Bricklet is available on Youtube:
Technical Specifications
| Property | Value |
|---|---|
| Current Consumption |
10mW (2mA at 5V, all pixels black) 110mW (22mA at 5V, all pixels white) |
| Resolution | 64x48 pixel, 13x6 characters |
| Size | 1.68cm (0.66") |
| Colors | Black/White |
| Dimensions (W x D x H) | 35 x 20 x 7mm (1.38 x 0.79 x 0.28") |
| Weight | 4g |
Comes Packaged With
- OLED 64x48 Bricklet
- Chosen Bricklet Cable
- Chosen Mounting Kit
