Final product price
- 20x4 character alphanumeric display
- Switchable blue backlight
- 4 push-buttons
In stock
- SKU
- 212
The price depends on the chosen options
€22.99
Incl. 19% VAT

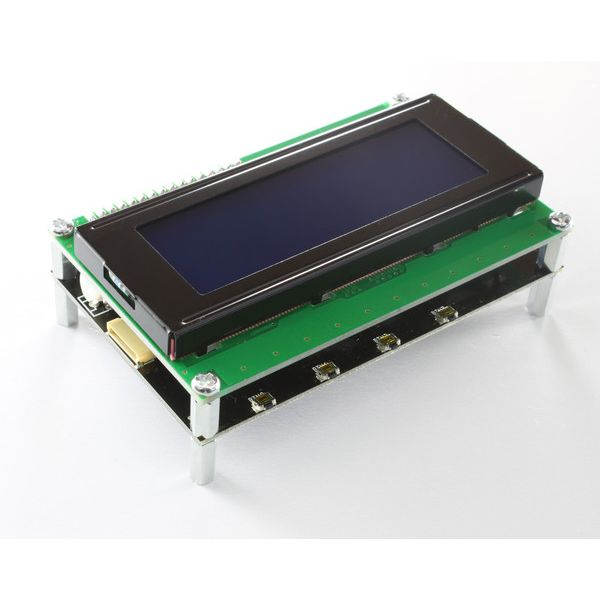

Description / LCD 20x4 Bricklet 1.2
This LCD Bricklet is equipped with a 20x4 character alphanumeric display with blue backlight and four push-buttons. It can be controlled with Bricks. The API allows to write characters to the LCD, get the state of the buttons, switch the backlight on or off and configure events for the buttons.
You can use this Bricklet to display text, for example a name of a song that is played on your PC or measurements from other Bricklets.
Technical Specifications
| Property | Value |
|---|---|
| LCD | Alphanumeric, 20 chars per line, 4 lines |
| Current Consumption | 36mA (with Backlight) |
| Backlight | Blue, software switchable |
| Contrast | Adjustable with potentiometer |
| Dimensions (W x D x H) | 60 x 98 x 22mm (2.36 x 3.86 x 0.86”)* |
| Weight | 96g* |
* without screws
Comes Packaged With
- LCD 20x4 Bricklet
- Chosen Bricklet Cable
- Chosen Mounting Kit / Case
