Summary
-
x
Final product price
- Measures distance and velocity with laser pulses
- Distance range 0-40m, resolution 1cm
- Measurement frequency up to 500Hz
In stock
- SKU
- 2144
The price depends on the chosen options
€199.99
Incl. 19% VAT

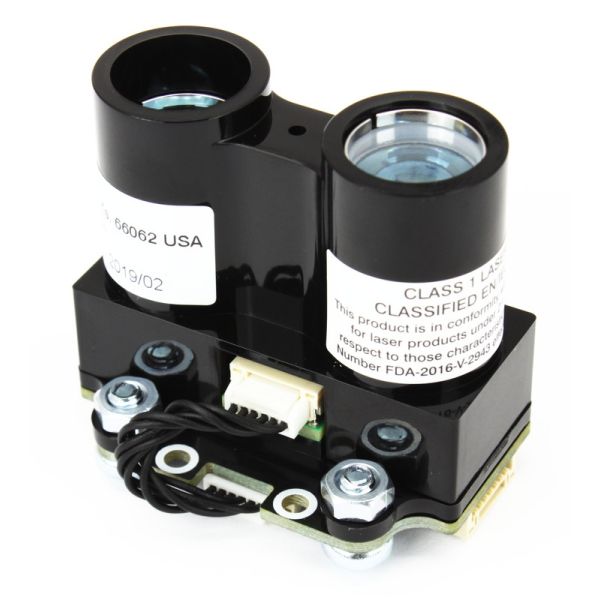

Description / Laser Range Finder Bricklet 2.0
The Laser Range Finder Bricklet 2.0 can be used to extend the features of Bricks by the capability to measure distances and velocity. The distance is measured with the help of a laser pulse and the time-of-flight principle.
Technical Specifications
| Property | Value |
|---|---|
| Sensor | LIDAR-Lite (V3) |
| Current Consumption |
230mW (46mA at 5V, Laser off)
455mW (91mA at 5V, Laser on)
|
| Distance (Range, Resolution) | 0-40m, 1cm |
| Sample Rate | up to 500Hz (depends on measured range) |
| Accuracy <5m | ±2.5cm (nonlinearity present below 1m) |
| Accuracy ≥5m | ±10cm |
| Ripple | ±1% of distance |
| Dimensions (W x D x H) | 49 x 45 x 36mm (1.93 x 1.77 x 1.42") |
| Weight | 30g |
Comes Packaged With
- Laser Range Finder Bricklet 2.0
- LIDAR-Lite Sensor (v3)
- Chosen Bricklet Cable
- Chosen Mounting Kit
