Final product price
- Supports low-level RS485 as well as Modbus RTU master/slave
- Modbus RTU implementation is fully compliant for reading and writing of coils and registers
- Supports full- and half-duplex
- Configurable baudrate, parity, stop bits and word length
- Switchable 120 Ohm termination
In stock
- SKU
- 277
The price depends on the chosen options
€34.99
Incl. 19% VAT

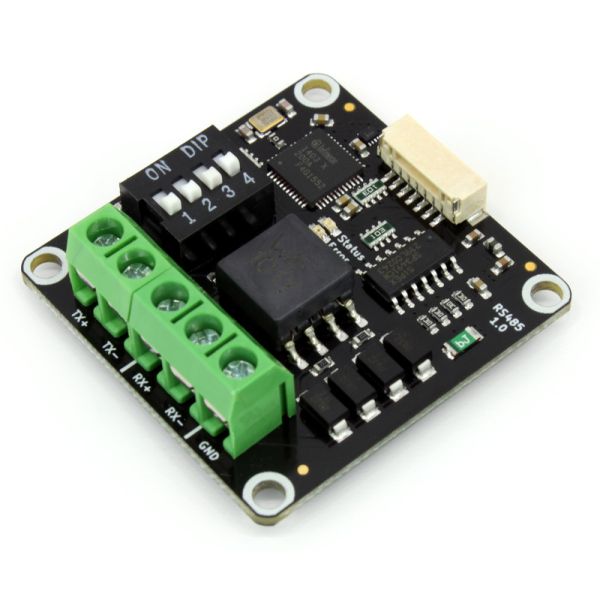

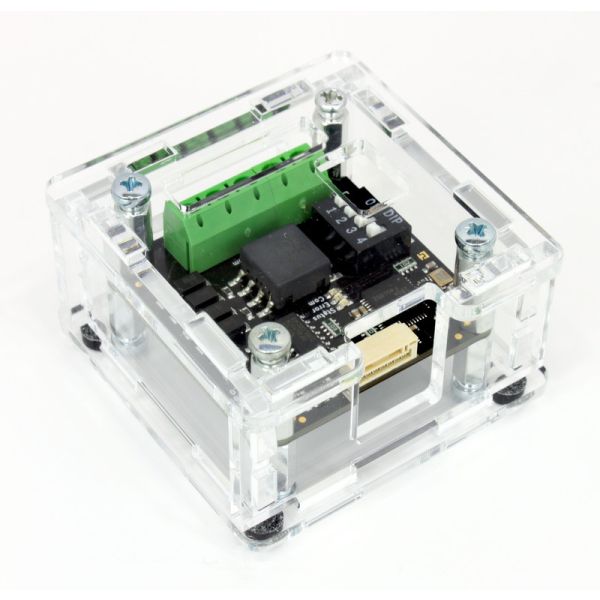

Description / RS485 Bricklet

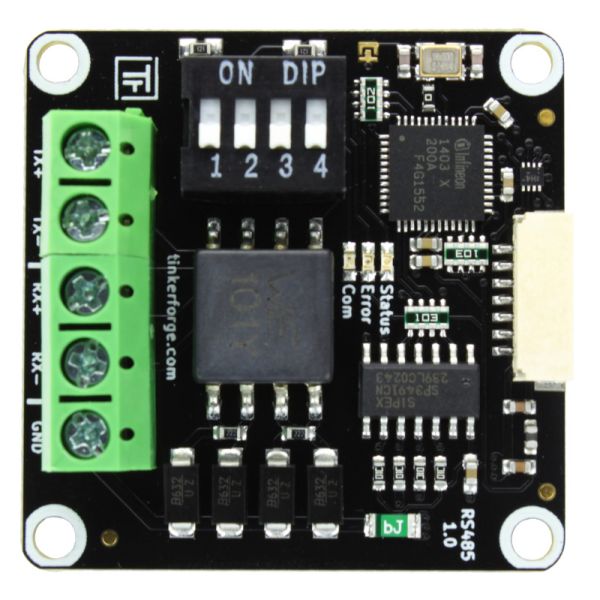

The RS485 Bricklet can be used to extend the features of Bricks by the capability to send and receive differential data with RS-485.

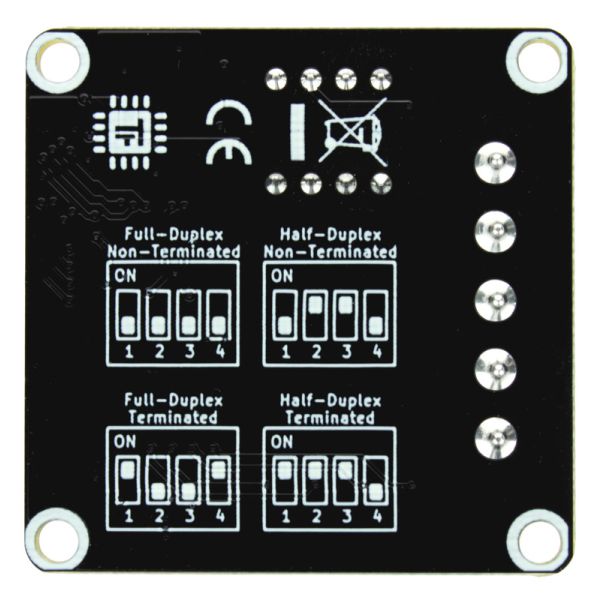

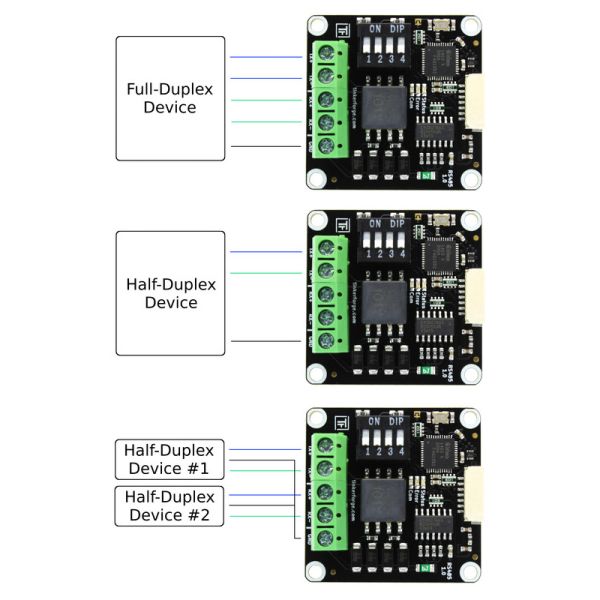

It supports full- and half-duplex and has configurable termination.
You can use the Bricklet in RS485, Modbus RTU master and Modbus RTU slave mode.

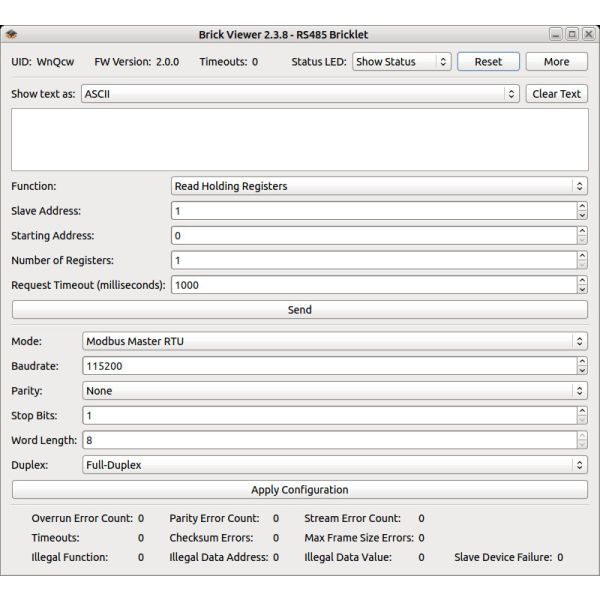

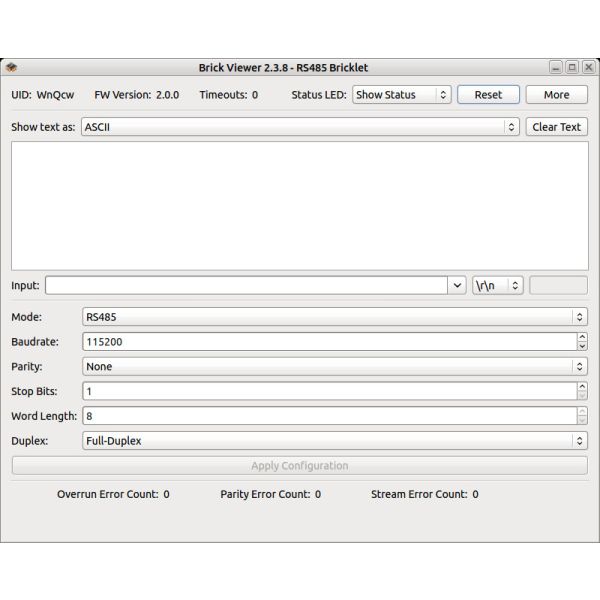

In RS485 mode you can send and receive arbitrary data. The Modbus modes are fully Modbus compliant. In Modbus RTU master mode you can write and read any coils/registers from a slave. In Modbus RTU slave mode you can provide data for coil/register reads and you receive the data that a Modbus master writes to the coils/registers.
This Bricklet ist not galvanically isolated to the Tinkerforge system. This means that there is a direct electrical connection between the terminals of the Bricklet and the rest of the system. Dependent of the application this can lead to undesired connections, ground loops or short circuits. These problems can be prevented by using the Bricklet together with a Isolator Bricklet.
Technical Specifications
| Property | Value |
|---|---|
| Current Consumption | 64mW (12.8mA at 5V, idle) |
| Baudrate | 100 - 2000000 baud |
| Parity | none / odd / even |
| Stop bits | 1 / 2 |
| Word length | 5 / 6 / 7 / 8 |
| Duplex | half / full |
| Dimensions (W x D x H) | 40 x 40 x 14mm (1.57 x 1.57 x 0.55") |
| Weight | 13g |
Comes Packaged With
- RS485 Bricklet
- Chosen Bricklet Cable

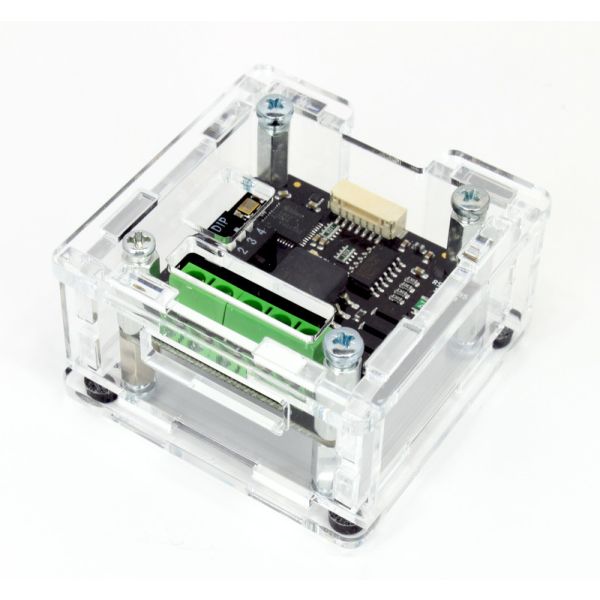

- Chosen Mounting Kit / Case
