Final product price
- Sends and receives serial data
- Provides RS-232 and UART-TTL interface
- Configurable baudrate, parity, stop bits, word length and flow control
In stock
- SKU
- 254
The price depends on the chosen options
€14.27
Regular Price
€17.99
Incl. 19% VAT

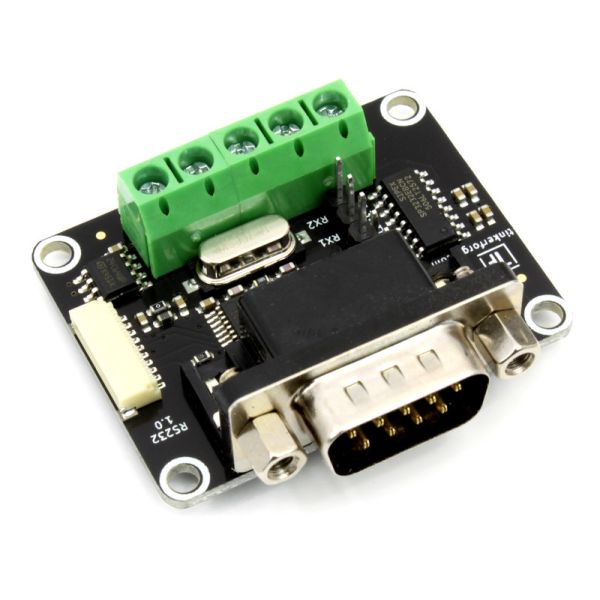

Description / RS232 Bricklet
This Bricklet is deprecated. Is has been replaced by the RS232 Bricklet 2.0. It is currently sold off with a large discount, but only as long as stock lasts.
The RS232 Bricklet can be used to extend the features of Bricks by the capability to send and receive serial data with RS-232 and 3.3V TTL signal level to comminucate with other serial devices.
Technical Specifications
| Property | Value |
|---|---|
| Current Consumption | 25mW (5mA at 5V, idle) |
| Baudrate | 300 - 230400baud |
| Parity | none / odd / even / forced 1 / forced 0 |
| Stop bits | 1 / 2 |
| Word length | 5 / 6 / 7 / 8 |
| Flow control | Software / Hardware / none |
| Dimensions (W x D x H) | 45 x 35 x 17mm (1.77 x 1.38 x 0.67") |
| Weight | 18g |
Comes Packaged With
- RS232 Bricklet
- Chosen Bricklet Cable
- Chosen Mounting Kit / Case
