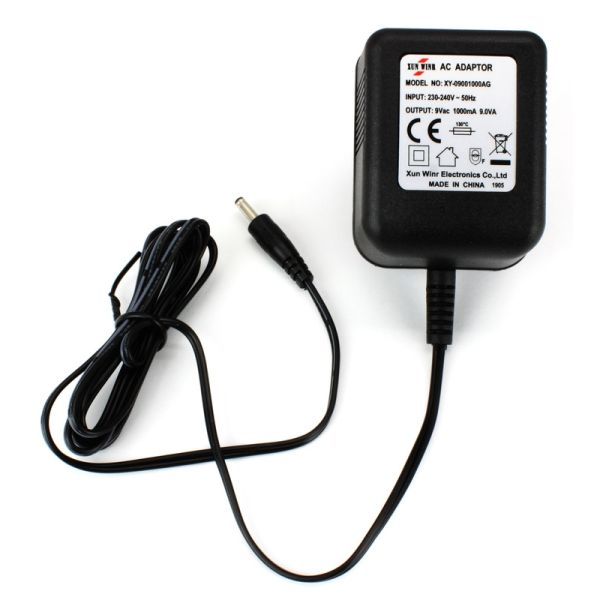

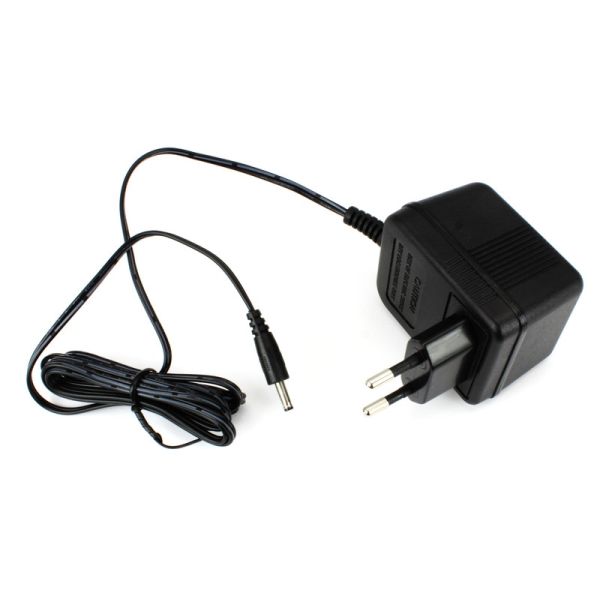

AC/AC voltage transformer with 230V AC input and 9V AC/1A output.
In stock
- SKU
- 6175
€12.99
Incl. 19% VAT
Description / AC/AC voltage transformer 230V/9V
AC/AC voltage transformer with 230V AC input and 9V AC/1A output.
Without load the output voltage will be about 12V AC. The Energy Monitor Bricklet comes pre-calibrated for this transformer.
Technical Specifications
| Property | Value |
|---|---|
| Model | XY-09001000AG |
| Connector | Barrel Connector: 3.8mm x 1.35mm |
| Input Voltage | 230V AC / 50 Hz |
| Output Voltage | 9V AC |
| Rated Output Current | 1A |
