Current transformer clamp with a measuring range of 0A - 5A (AC) and output voltage of 0-1V.
In stock
- SKU
- 6176
€9.98
Incl. 19% VAT

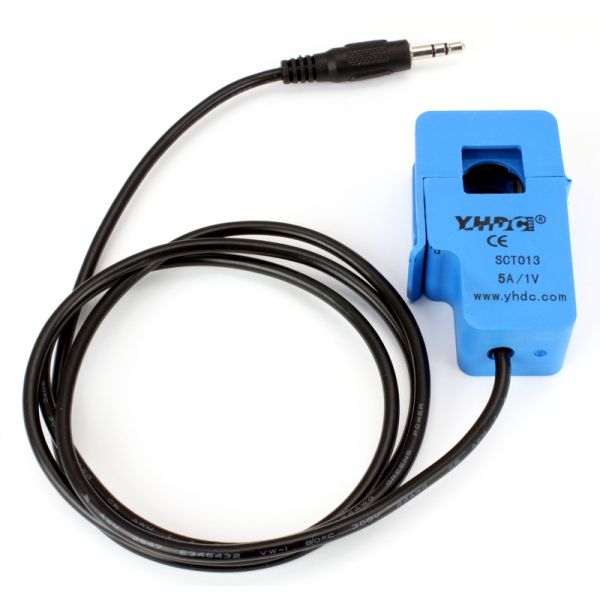

Description / 5A:1V current transformer clamp (hinged)
Current transformer clamp with a measuring range of 0A - 5A (AC) and output voltage of 0-1V.
This current transformer is compatible to the Energy Monitor Bricklet.
Technical Specifications
| Property | Value |
|---|---|
| Model | SCT-013-005 |
| Connector | 3.5mm audio plug |
| Max Input Current | 5A |
| Output Voltage | 0-1V |
| Size of Opening | 13mm x 13mm |
| Non-Linearity | +- 3% |
| Working Temperature | -25°C - 70°C |
