- 300° rotary potentiometer
- Outputs position from -150° to 150° in 1° steps
In stock
- SKU
- 215
The price depends on the chosen options
€6.99
Incl. 19% VAT
Description / Rotary Poti Bricklet
This Bricklet is deprecated. Is has been replaced by the Roatry Poti Bricklet 2.0. It is currently sold off with a large discount, but only as long as stock lasts.

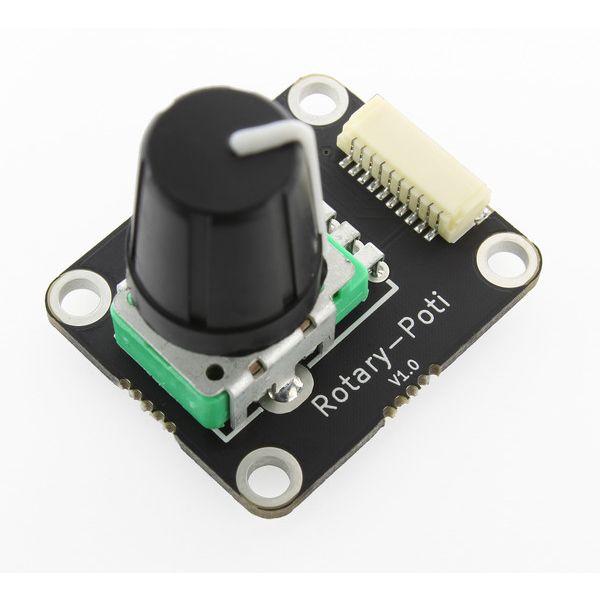

The Rotary Poti Bricklet is equipped with a 1-turn rotary potentiometer. It can be connected to a Brick, with which the position of the slider can be read out. With configurable events it is possible to react on changing positions without polling.
You can use this Bricklet for speed, volume control or similar purposes.
Technical Specifications
| Property | Value |
|---|---|
| Rotary Potentiometer | 1-turn, 300° |
| Current Consumption | 1mA |
| Position | -150° to 150° (left to right) in 1° steps |
| Dimensions (W x D x H) | 30 x 25 x 23mm (1.18 x 0.98 x 0.9”)* |
| Weight | 5g* |
* not including knob
Comes Packaged With
- Rotary Poti Bricklet
- Black Knob
- Chosen Bricklet Cable
- Chosen Mounting Kit / Case
