Summary
-
x
Final product price
- Creates beeps with configurable frequency of 585Hz to 7100Hz
- Configurable beep duration
- Morse code output supported
In stock
- SKU
- 242
The price depends on the chosen options
€10.98
Incl. 19% VAT
Description / Piezo Speaker Bricklet
This Bricklet is deprecated. Is has been replaced by the Piezo Speaker Bricklet 2.0. It is currently sold off with a large discount, but only as long as stock lasts.

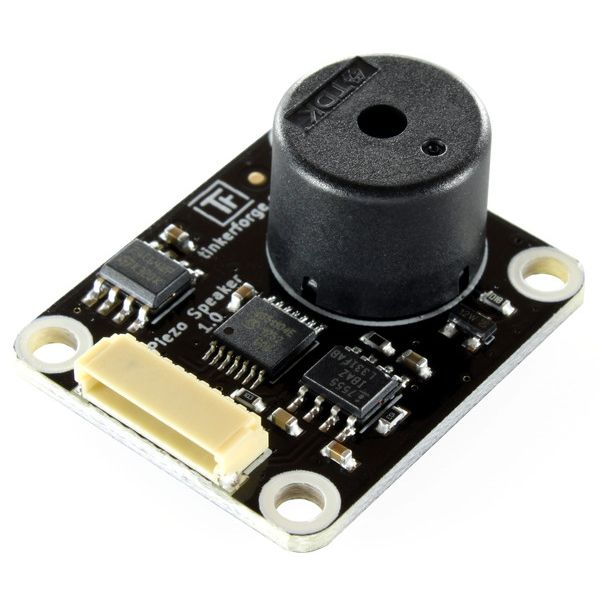

The Piezo Speaker Bricklet can be used to extend Bricks by the possibility to generate beeps with different frequencies. The available frequency range is 585Hz to 7100Hz. A beep has a configurable length and it is possible to transmit a Morse Code string.
A typical application is to beep on specific events (e.g. "email received").
Technical Specifications
| Property | Value |
|---|---|
| Buzzer | PS1420P02CT |
| Current Consumption | 1mA (idle), 4mA (active) |
| Frequency Range | 585 - 7100Hz (configurable) |
| Sound Pressure | 60 - 82dB/10cm (depends on frequency) |
| Dimensions (W x D x H) | 25 x 30 x 13mm (0.98 x 1.18 x 0.51") |
| Weight | 5g |
Comes Packaged With
- Piezo Speaker Bricklet
- Chosen Bricklet Cable
- Chosen Mounting Kit / Case
