- 59mm linear potentiometer
- Outputs position from 0% to 100% in 1% steps
In stock
- SKU
- 213
The price depends on the chosen options
€7.49
Incl. 19% VAT
Description / Linear Poti Bricklet
This Bricklet is deprecated. Is has been replaced by the Linear Poti Bricklet 2.0. It is currently sold off with a large discount, but only as long as stock lasts.

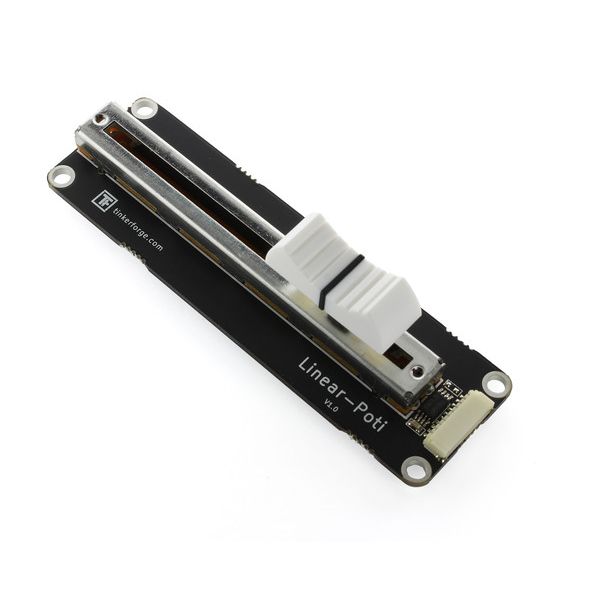

The Linear Poti Bricklet is equipped with a linear potentiometer ("fader", "slider"). It can be connected to a Brick, with which the position of the slider can be read out. With configurable events it is possible to react on changing positions without polling.
You can use this Bricklet for speed, volume control or similar purposes.
Technical Specifications
| Property | Value |
|---|---|
| Linear Potentiometer | 59mm (2.32") adjustable length |
| Current Consumption | 1mA |
| Position | 0% - 100% (down - up) in 1% steps |
| Dimensions (W x D x H) | 25 x 85 x 20mm (0.98 x 3.35 x 0.78”)* |
| Weight | 14g* |
* without knob
Comes Packaged With
- Linear Poti Bricklet
- Black Knob
- Chosen Bricklet Cable
- Chosen Mounting Kit / Case
