Final product price
- Measures the reflectivity of a surface
- Can be used to detect/follow lines
- Can be used to measure distances of ca. 0-10mm
In stock
- SKU
- 241
The price depends on the chosen options
€7.98
Incl. 19% VAT

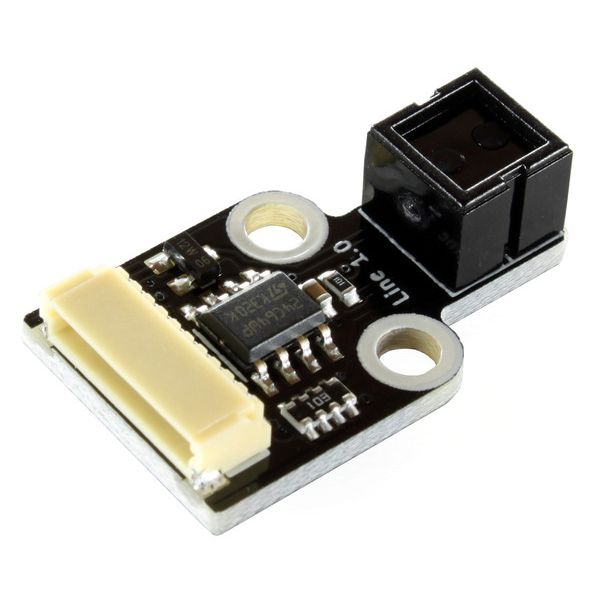

Description / Line Bricklet
The Line Bricklet can extend Bricks by a reflective optical sensor. The sensor consists of an infrared emitter and a phototransistor. Output of the sensor is the reflectivity of a surface.
The reflectivity value can be used to detect and follow lines (e.g. a black line has a different reflectivity then a white background). The Line Bricklet can also be used to measure the distance to a surface, since the received light decreases with increased distance.
Technical Specifications
| Property | Value |
|---|---|
| Sensor | CNY70 |
| Current Consumption | 33mA |
| Resolution | 12bit |
| Emitter Wavelength | 950nm |
| Dimensions (W x D x H) | 25 x 15 x 9mm (0.98 x 0.59 x 0.35") |
| Weight | 2g |
Comes Packaged With
- Line Bricklet
- Chosen Bricklet Cable
- Chosen Mounting Kit
