Summary
-
x
Final product price
- Detects presence of magnetic field
- Counts (dis-)appearances of magnetic fields
- Can be used to read out water/electricity meter
In stock
- SKU
- 240
The price depends on the chosen options
€7.98
Incl. 19% VAT

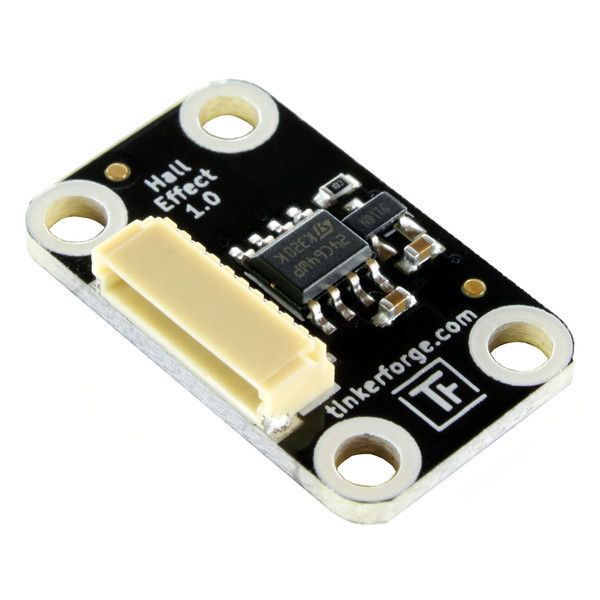

Description / Hall Effect Bricklet
This Bricklet is deprecated. Is has been replaced by the Hall Effect Bricklet 2.0. It is currently sold off with a large discount, but only as long as stock lasts.
The Hall Effect Bricklet extends Bricks and can detect the presence of magnetic fields. It counts the (dis-)appearances of magnetic fields and can for example be used to measure the speed of a wheel with attached magnet with up to 13Hz.
Example applications are:
- Detect if a door is open or closed
- Reading out water/electricity meters
Technical Specifications
| Property | Value |
|---|---|
| Sensor | AH180N |
| Current Consumption | 1mA |
| Operation | Omnipolar (North and South pole is detected) |
| Trigger Point | -35/35 Gauss |
| Release Point | -25/25 Gauss |
| Sampling Rate | 8Hz |
| Dimensions (W x D x H) | 25 x 15 x 5mm (0.98 x 0.59 x 0.19") |
| Weight | 2g |
Comes Packaged With
- Hall Effect Bricklet
- Chosen Bricklet Cable
- Chosen Mounting Kit
