Summary
-
x
Final product price
- Sends and receives data through CAN bus
- Configurable baudrate, modes and filters
In stock
- SKU
- 270
The price depends on the chosen options
€12.99
Incl. 19% VAT

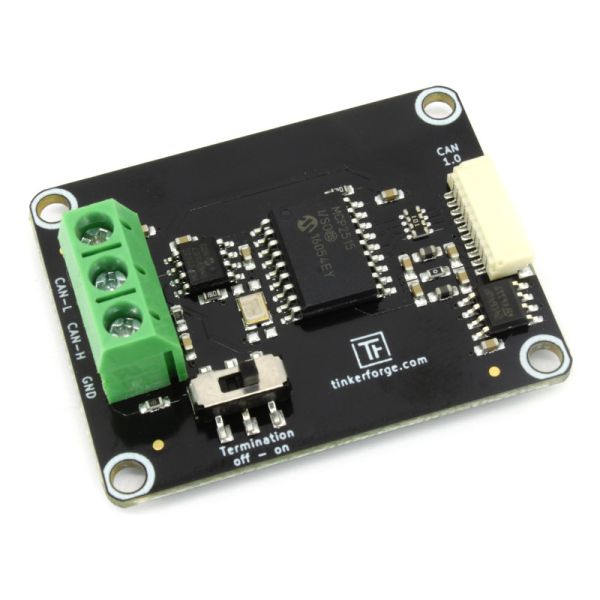

Description / CAN Bricklet
This Bricklet is deprecated. Is has been replaced by the CAN Bricklet 2.0. It is currently sold off with a large discount, but only as long as stock lasts.
The CAN Bricklet can be used to extend the features of Bricks by the capability to send and receive CAN data in a CAN bus.
The baudrate can be configured between 10kbit/s and 1Mbit/s. It is possible to apply filters to match for frames with a specific identifier.
Technical Specifications
| Property | Value |
|---|---|
| Current Consumption | 30mW (6mA at 5V, idle) |
| Baudrate | 10kbit/s - 1Mbit/s |
| Maximum Throughput | 1000 frames per second * |
| Filters | Disabled / Accept All / Match / Match Data / Match Extended |
| Dimensions (W x D x H) | 45 x 35 x 14mm (1.77 x 1.38 x 0.55") |
| Weight | 9g |
* 1000 frames per second equals to 44kbit/s to 128kbit/s depending on the size of the frames.
Comes Packaged With
- CAN Bricklet
- Chosen Bricklet Cable
- Chosen Mounting Kit
