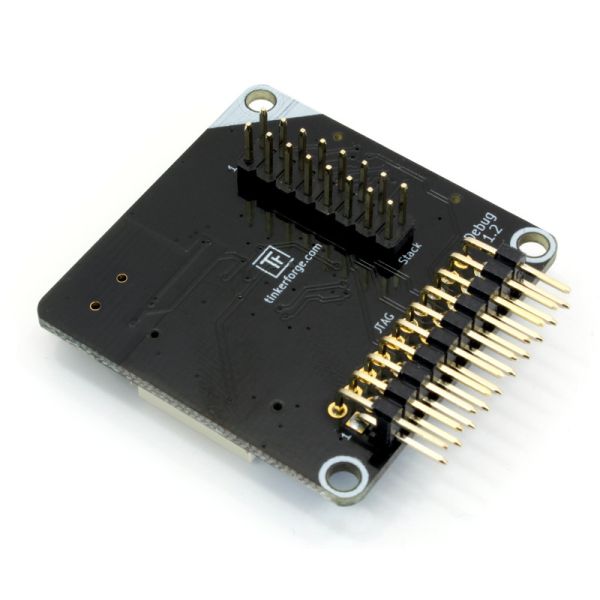

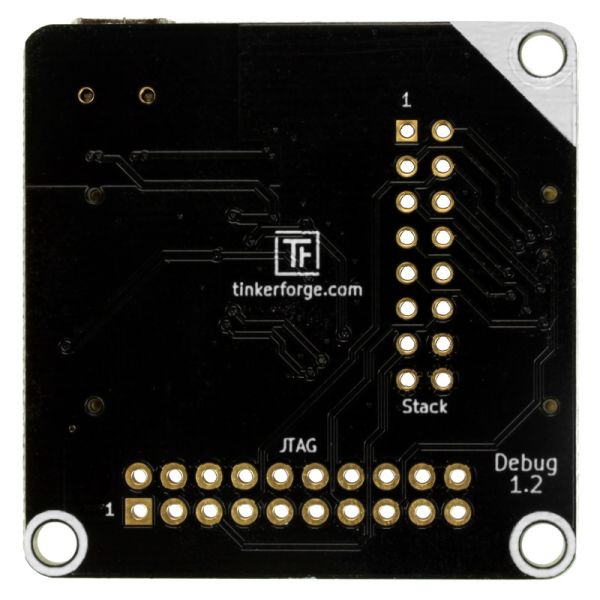

Description / Debug Brick 1.2

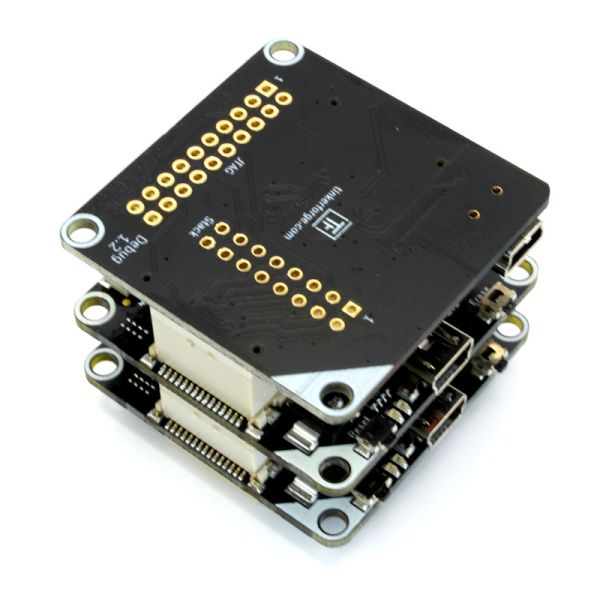

The Debug Brick can be used to add JTAG and serial console debug capabilities to Bricks, Bricklets and stacks.
You only need the Debug Brick if you want to debug the low level C firmware of Bricks or Bricklets. It does not add any features for PC based programming.

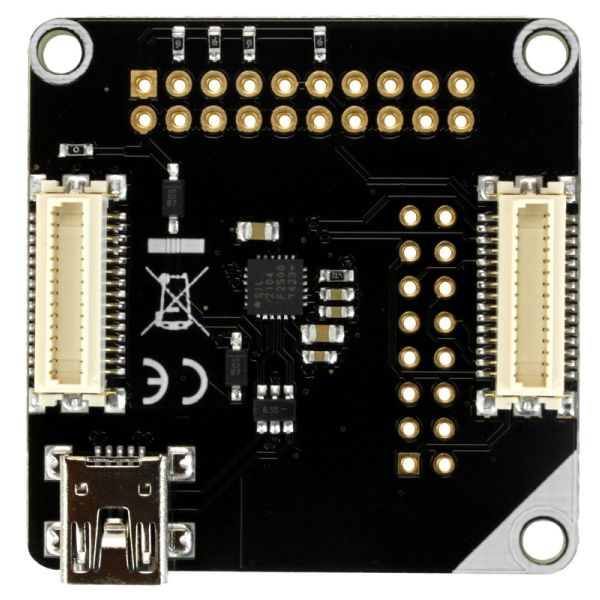

In hardware version 1.2 the D-Sub 9 connector got replaced with a Mini-USB connector and a Silicon Labs CP2104 USB-to-serial converter. This converter requires an extra driver that can be downloaded from the Silicon Labs website.
Technical Specification
| Property | Value |
|---|---|
| Dimensions (W x D x H) | 40 x 40 x 8mm (1.57 x 1.57 x 0.31”) |
| Weight | 8g |
Comes Packaged With
- Debug Brick
- Chosen Mounting Kit
