- Measures ambient temperature with 0.2°C accuracy
- Temperature range from -40°C to 125°C
- Output in 0.01°C steps
In stock
- SKU
- 2113
The price depends on the chosen options
€12.00
Incl. 19% VAT

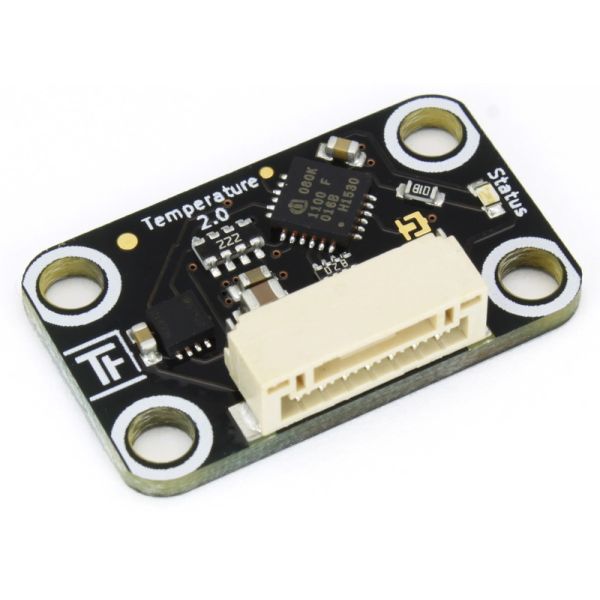

Description / Temperature Bricklet 2.0
The Temperature Bricklet 2.0 can be used to extend the features of Bricks by the capability to measure temperature. The measured temperature can be read out in °C. With configurable events it is possible to react on changing temperatures without polling.
Technical Specifications
| Property | Value |
|---|---|
| Sensor | STS3x |
| Current Consumption | 28mW (5.6mA at 5V) |
| Ambient Temperature | -40°C to 125°C in 0.01°C steps |
| Accuracy | typical 0.2°C in the range of 0°C to 65°C* |
| Dimensions (W x D x H) | 25 x 15 x 5 mm (0.98 x 0.59 x 0.19") |
| Weight | 2g |
* This is the temperature at the exact position of the sensor. If the Bricklet is used inside of an enclosure, the air around the Bricklet may heat up more than the ambient air. The Bricklet does have API to calibrate this kind of offset.
Comes Packaged With
- Temperature Bricklet 2.0
- Chosen Bricklet Cable
- Chosen Mounting Kit / Case
