- Wireless house automation
- Controls remote mains switches (supported devices)
- Can control remote mains switches with dimming function
- Can read out the remotes of remote mains switches
In stock
- SKU
- 289
The price depends on the chosen options
€18.99
Incl. 19% VAT
Description / Remote Switch Bricklet 2.0

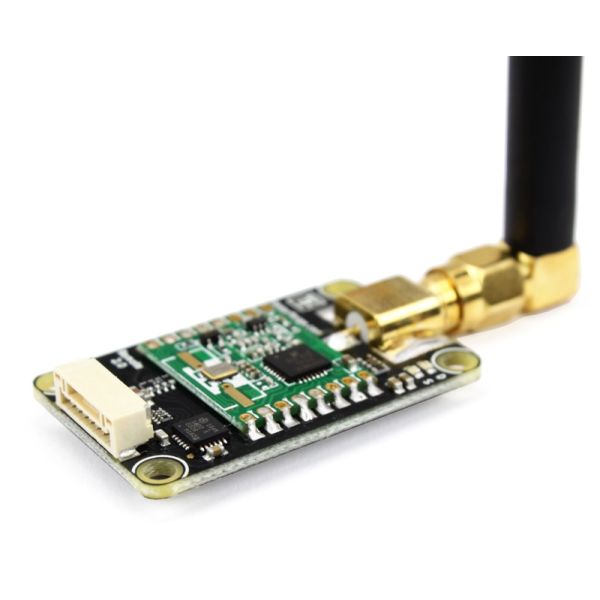

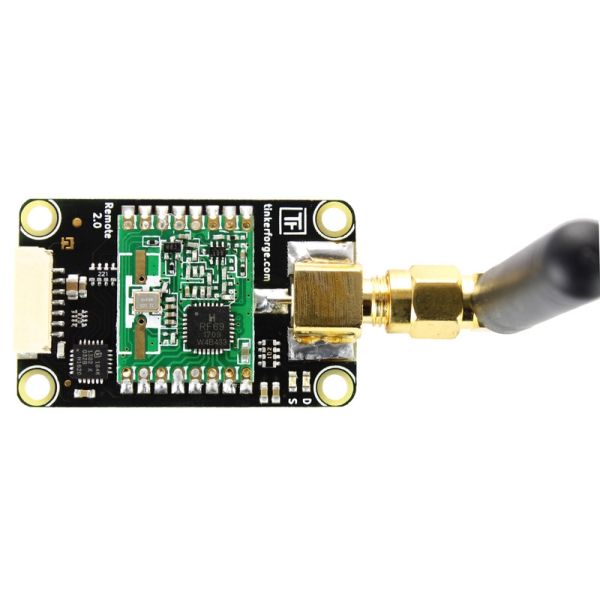

The Remote Switch Bricklet is equipped with a 433MHz radio module (433MHz SMA antenna is included). It can be used to extend Bricks by the possibility to control remote mains switches that are based on the PT2262 and HX2262 ICs.

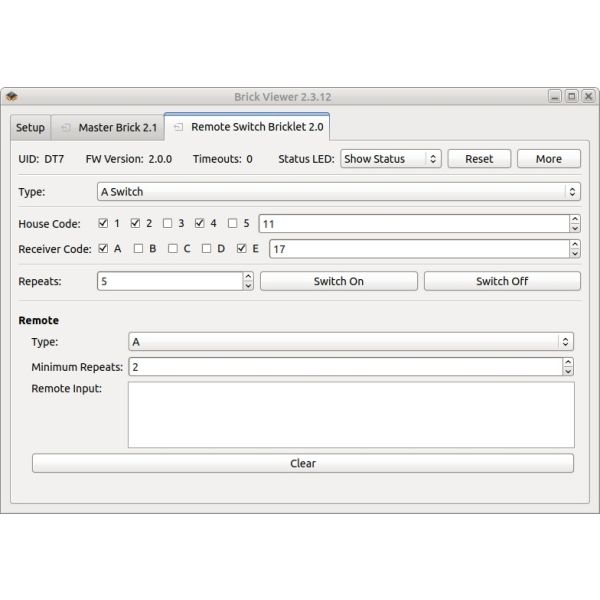

House code as well as receiver code can be configured with the API.
The Bricklet can also be used as a receiver for the remotes.
Technical Specifications
| Property | Value |
|---|---|
| Radio Module | RFM69HW |
| Current Consumption | 113mW (idle), 231mW (sending) |
| Radio Frequency | 433MHz |
| Supported Remote Mains Switches | All based on PT2262 and HX2262, (complete list) |
| Dimensions (W x D x H) | 25 x 40 x 5mm (0.98 x 1.58 x 0.2")* |
| Weight | 8g* |
* without antenna
Comes Packaged With
- Remote Switch Bricklet 2.0
- 433MHz SMA Antenna
- Chosen Bricklet Cable
- Chosen Mounting Kit / Case
