- Controls one brushed DC motor with max. 36V and 10A (continuously)
- Direction, velocity and acceleration controllable
- Two configurable opto-coupled GPIOs for end-stops or similar
- Status, error, direction and GPIO LEDs
- Configurable overtemperature and overcurrent callbacks
In stock
- SKU
- 2156
The price depends on the chosen options
€59.99
Incl. 19% VAT
Description / Performance DC Bricklet
Description

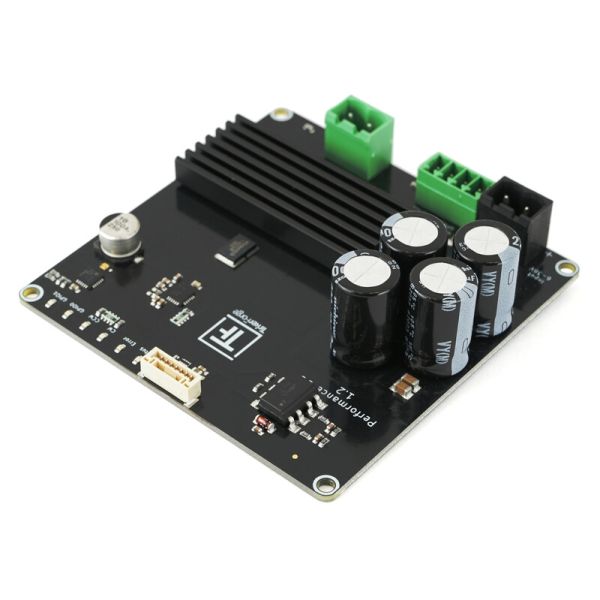

With the Performance DC Bricklet you are able to control one DC brushed motor (max. 36V and 10A (continuously)). With the provided API for many programming languages you can control the direction, velocity and acceleration of the connected motor. Additionally, the drive mode can be switched between Drive/Brake and Drive/Coast (see Drive Modes).
Besides methods to control the connected motor the API provide the possibility to measure current consumption or the input voltage. In case of overtemperature and overcurrent callbacks can be triggered.
The Bricklet comes with two opto-coupled inputs that can be configured as end-stops.
Six user-configurable status LEDs can be used to show the GPIO state, motor direction, errors and more.
Technical Specifications
| Property | Value |
|---|---|
| Current Consumption | 60mW (12mA at 5V) without motor |
| Maximum Motor Current | 10A continous |
| Minimum/Maximum Input Voltage | 6V/36V |
| PWM Frequency | Configurable, 1-50kHz, default 20kHz |
| Velocity | -32767 to 32767, full reverse to full forward, 0=stop |
| Acceleration/Deceleration | 0 to 65535, velocity/s, increment for velocity/s |
| Dimensions (W x D x H) | 80 x 80 x 22mm (3.15 x 3.15 x 0.87") |
| Weight | 50g |
Comes Packaged With
- Performance DC Bricklet
- 4 Pole Green Connector 3.5mm (Screw Clamp)
- 2 Pole Green Connector 5mm (Screw Clamp)
- 2 Pole Black Connector 5mm (Screw Clamp)
- Chosen Bricklet Cable
- Chosen Mounting Kit
