- Two relays for switching AC/DC devices
- Switches up to 240VAC/10A and 30VDC/7A
Out of stock
- SKU
- 284
The price depends on the chosen options
€16.99
Incl. 19% VAT

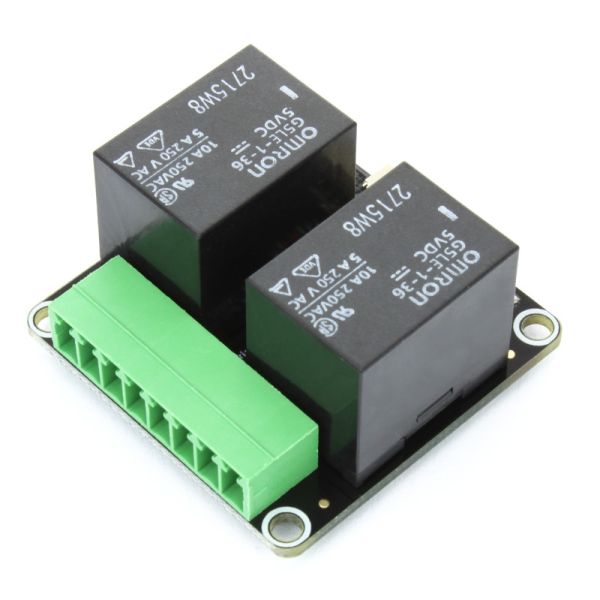

Description / Industrial Dual Relay Bricklet
The Industrial Dual Relay Bricklet can be used to extend the features of Bricks by two relays. Each relay has three terminals such that the terminal in the middle is electrically connected to the terminal left or right depending on the state. The state is visualized by a LED. The Bricklet is equipped with
You can use this Bricklet to switch power supplies, motors, lamps, etc. Consider the maximum voltage and current.
If you want to switch inductive loads, please see: Inductive Load Switching.
Technical Specifications
| Property | Value |
|---|---|
| Relay | Omron G5LE-1-36 |
| Current Consumption |
27mW (5.4mA at 5V)
+ 350mW (70mA at 5V) per activated relay
|
| Maximum Voltage/Current |
AC: 240V/10A
DC: 30V/7A
|
| Dimensions (W x D x H) | 40 x 40 x 25mm (1.57 x 1.57 x 0.98") |
| Weight | 29.4g |
Comes Packaged With
- Industrial Dual Relay Bricklet
- 8 Pole Green Connector
- Chosen Bricklet Cable
- Chosen Mounting Kit / Case
