Summary
-
x
Final product price
- Linear Potentiometer with 100mm fader travel
- Fader position can be controlled by user and with a motor
- No additional power supply necessary
- Automatic calibration
In stock
- SKU
- 267
The price depends on the chosen options
€39.98
Incl. 19% VAT
Description / Motorized Linear Poti Bricklet

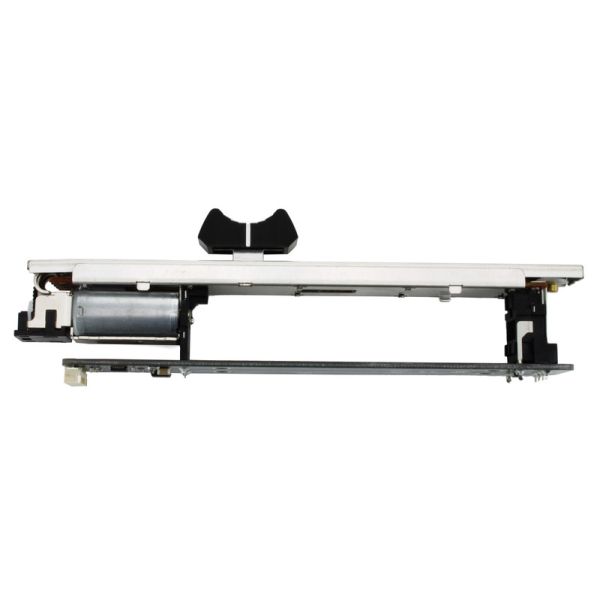

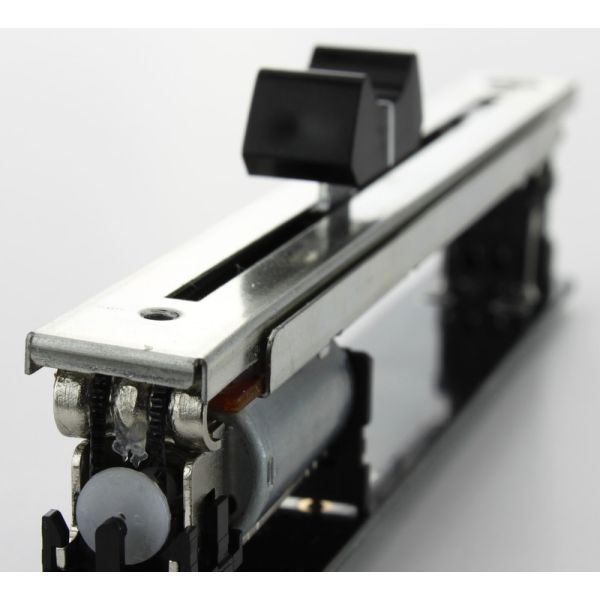

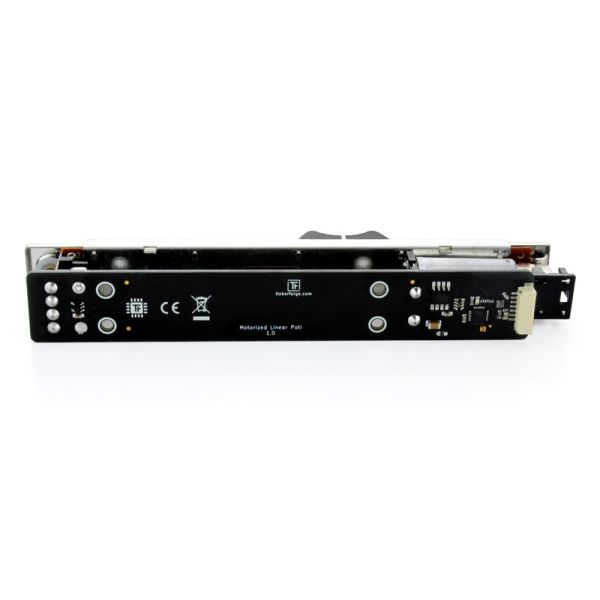

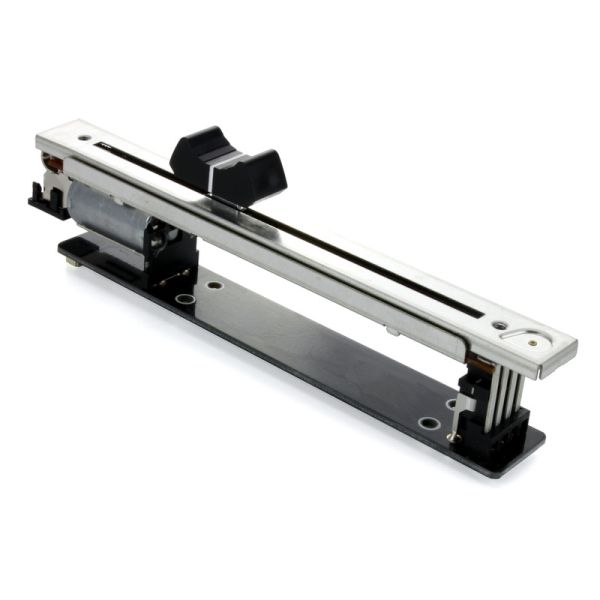

The Motorized Linear Poti Bricklet is equipped with a motor controllable 100mm linear potentiometer. It can be connected to a Brick.

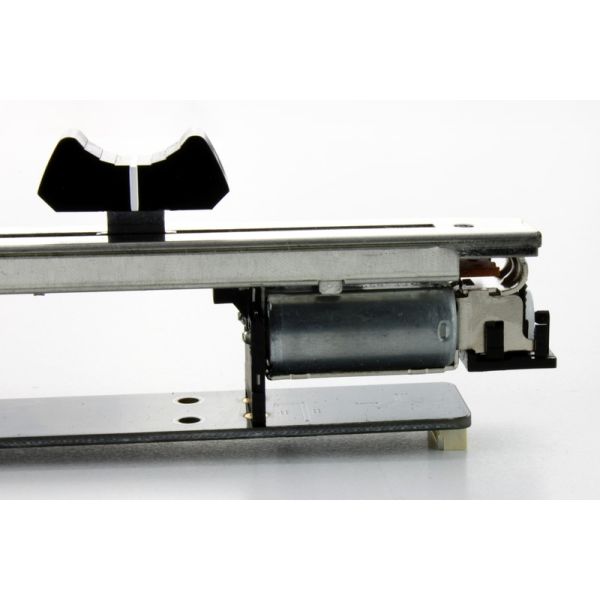

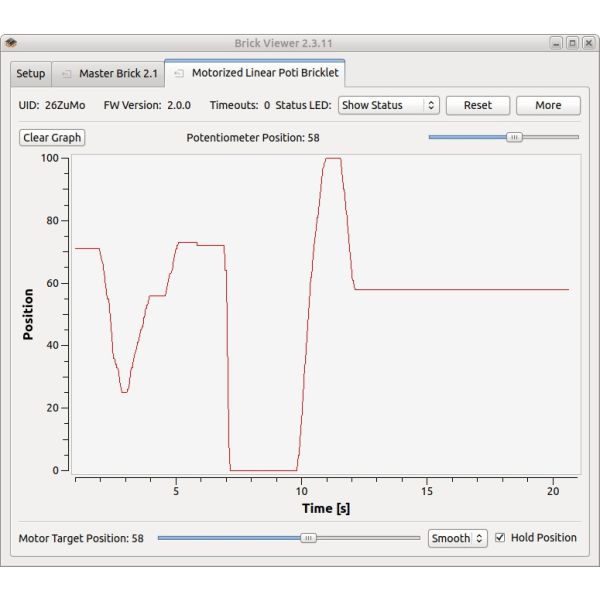

The position of the potentiometer ranges from 0 (slider down) to 100 (slider up). A user can change the position of the potentiometer and it is possible to drive the potentiometer to any position with an integrated motor.
You can configure the potentiometer to hold the position. In this case it automatically drives back to the set-point when a user changes the position. If it is not configured to hold a position, the Bricklet will only drive to the set-point once and after that the user can control the position again.
Technical Specifications
| Property | Value |
|---|---|
| Current Consumption (motor off) | 48.5mW (9.7mA at 5V) |
| Current Consumption (motor on) | 465mW (93mA at 5V) |
| Fader Travel | 100mm |
| Mounting hole size | M3 |
| Distance between mounting holes | 120mm |
| Dimensions (W x D x H) | 145 x 20 x 28mm (5.70 x 0.79 x 1.10") |
| Weight | 67g |
Comes Packaged With
- Motorized Linear Poti Bricklet
- Chosen Bricklet Cable
- Chosen Mounting Kit / Case
