Summary
-
x
Final product price
- Measures magnetic flux density between -7mT and 7mT
- Counter with configurable thresholds, bipolar and unipolar
- Can count with a frequency of up to 10kHz
In stock
- SKU
- 2132
The price depends on the chosen options
€14.99
Incl. 19% VAT

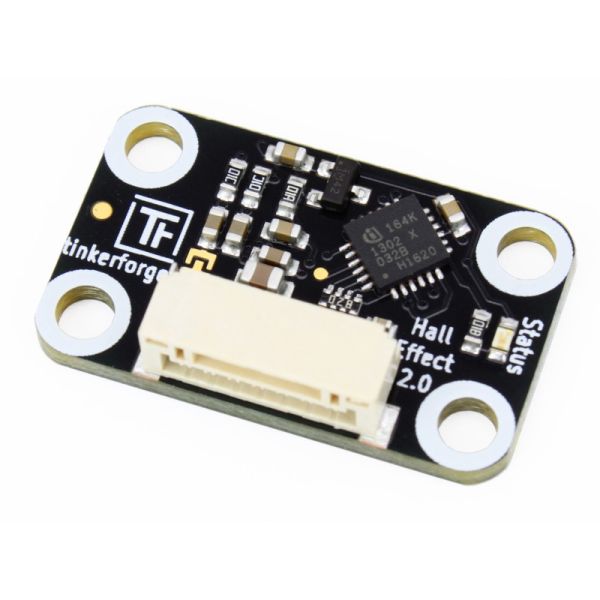

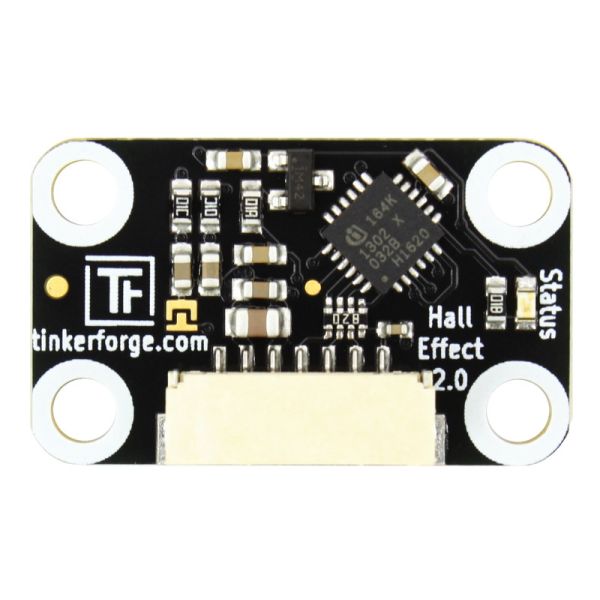

Description / Hall Effect Bricklet 2.0
The Hall Effect Bricklet extends Bricks and can magnetic flux density (magnetic induction) from -7mT to 7mT (milli Tesla). It can count the (dis-)appearances of magnetic fields and can for example be used to measure the speed of a wheel with attached magnet with a frequency of up to 10kHz.

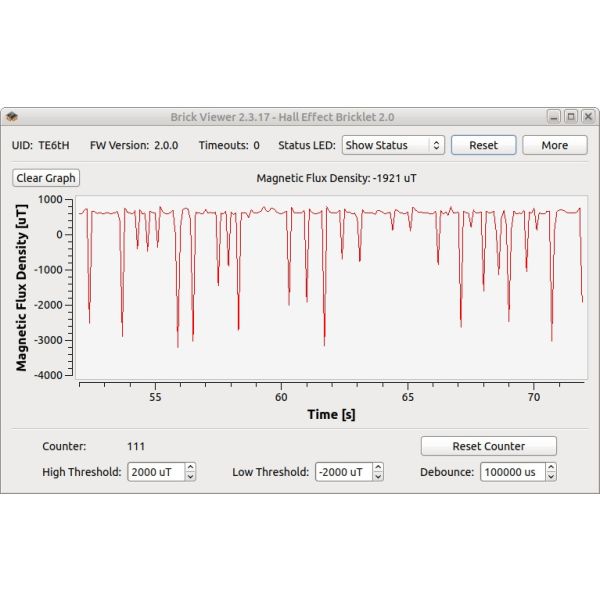

The low/high threshold for the counter as well as a debounce time can be configured and adjusted to a specific application.
Example applications are:
- Detect if a door is open or closed
- Reading out water/electricity meters
- Counting RPM of motors
Technical Specifications
| Property | Value |
|---|---|
| Sensor | DRV5053 |
| Current Consumption | 59mW (11.8mA at 5V) |
| Operation | Omnipolar (North and South pole is detected) |
| Detection Range | -7mT to 7mT |
| Counter Trigger Point | Configurable (unipolar and bipolar) |
| Counter Sampling Rate | 10kHz |
| Dimensions (W x D x H) | 25 x 15 x 5mm (0.98 x 0.59 x 0.19") |
| Weight | 2g |
Comes Packaged With
- Hall Effect Bricklet 2.0
- Chosen Bricklet Cable
- Chosen Mounting Kit
