Summary
-
x
Final product price
- Measures voltages up to 42V (DC)
- Full-scale resolution of ~10mV
In stock
- SKU
- 295
The price depends on the chosen options
€13.99
Incl. 19% VAT

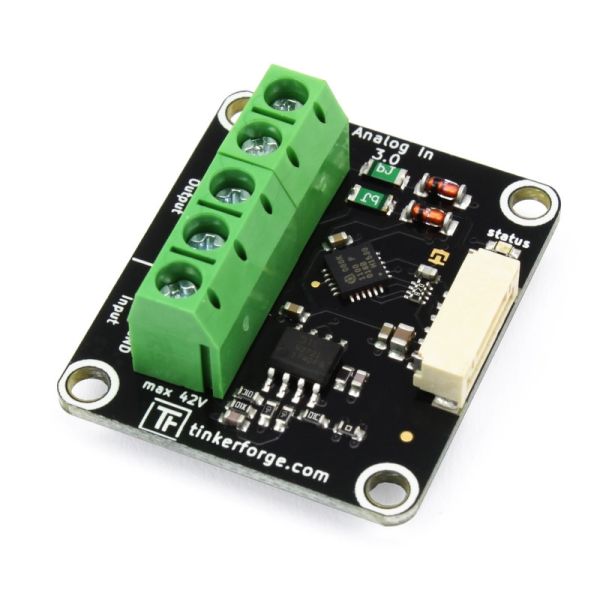

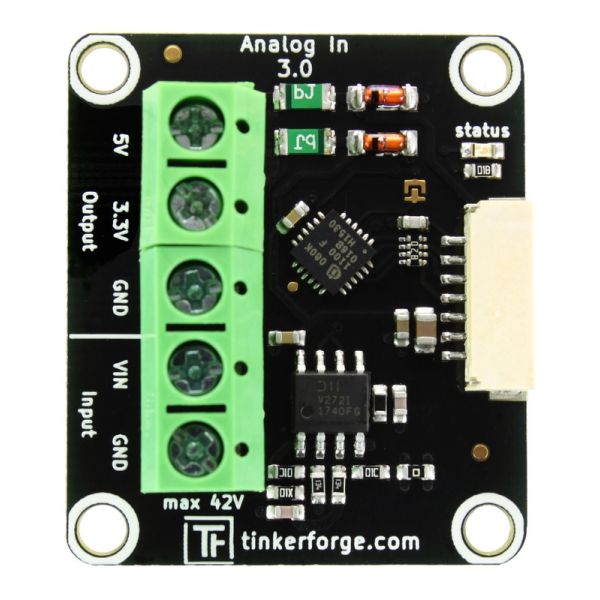

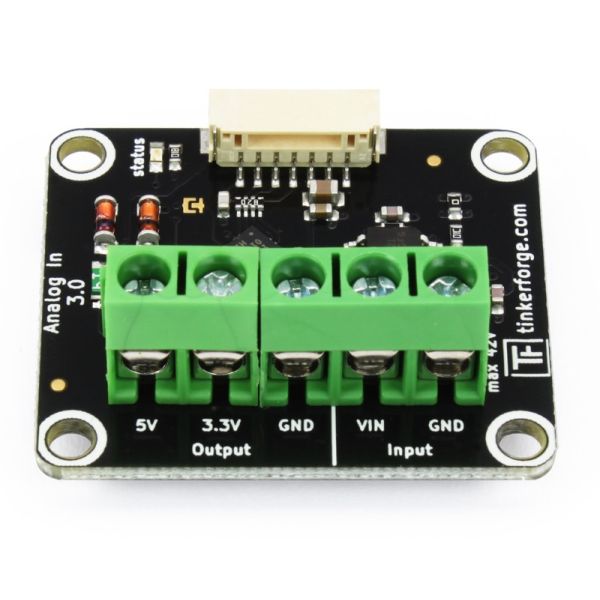

Description / Analog In Bricklet 3.0
The Analog In Bricklet 3.0 can be used to extend the features of Bricks by the capability to measure voltages. It is the successor of the Analog In Bricklet 2.0. The voltage can be read out in Volt directly without conversions necessary.
With configurable events it is possible to react on changing voltages without polling.
Technical Specifications
| Property | Value |
|---|---|
| Current Consumption | 70mW (14mA at 5V) |
| Voltage | 0V - 42V (DC) in 1mV steps, 12bit resolution (~10mV) |
| Maximum Output Current | 150mA (3.3V), 150mA (5V) |
| Dimensions (W x D x H) | 35 x 30 x 14mm (1.38 x 1.18 x 0.55") |
| Weight | 8g |
Comes Packaged With
- Analog In Bricklet 3.0
- Chosen Bricklet Cable
- Chosen Mounting Kit / Case
