- Load Cell
- 0-50kg Range
- 0.02%FS Precision
- Compatible to Load Cell Bricklet
In stock
- SKU
- 6128
€12.99
Incl. 19% VAT

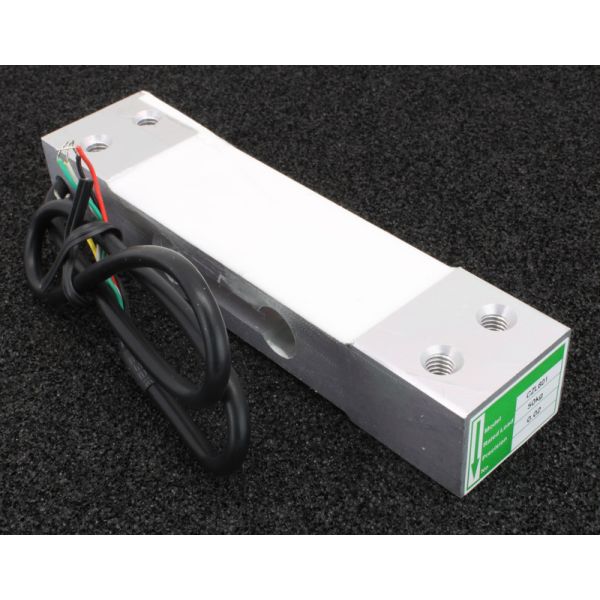

Description / Load Cell 50kg CZL601
This load cell is compatible to the Load Cell Bricklet 2.0.
Technical Specifications
| Property | Value |
|---|---|
| Model | CZL601-50kg |
| Measurement Range | 0kg to 50kg |
| Rated Output | 2.0±0.2mV/V |
| Non-Linearity | 0.013%FS |
| Hysteresis | 0.016%FS |
| Repeatability | 0.013%FS |
| Creep | 0.02%FS/30min |
| Temperature Effect on Zero | 0.02%FS/10°C |
| Temperature Effect on Span | 0.03%FS/10°C |
| Zero Balance | ±1.5%FS |
| Input Impedance | 405±10Ω |
| Output Impedance | 350±3Ω |
| Insulation Resistance | ≥ 5000MΩ at 50V (DC) |
| Recommended Excitation Voltage | 9V to 12V (DC) |
| Allowed Excitation Voltage | 5V to 18V (DC) |
| Compensated Temperature Range | -10°C to +40°C |
| Operating Temperature Range | -20°C to +55°C |
| Safe Overload | 120%FS |
| Ultimate Overload | 150%FS |
| Connection |
|

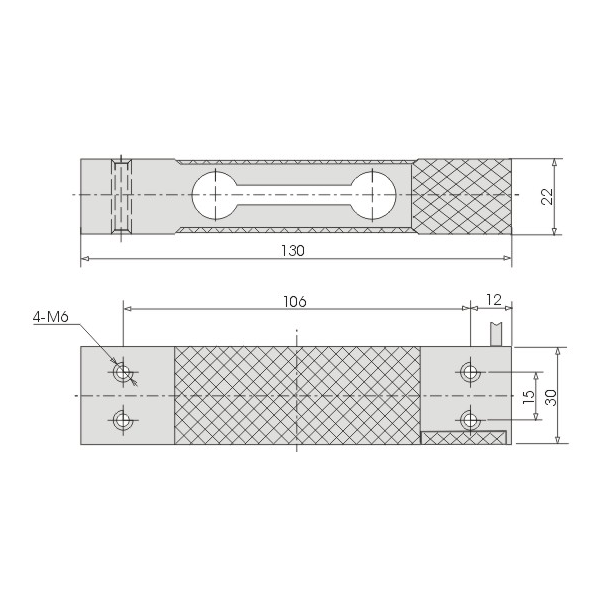

| Dimensions (W x D x H) | 130 x 30 x 22mm (5.12 x 1.18 x 0.87") |
| Weight | 200g |
| Mounting | 4x M6 |
%FS = Percent of Full Scale
