- Micro Load Cell
- 0-1kg Range
- 0.05%FS Precision
- Compatible to Load Cell Bricklet
In stock
- SKU
- 6130
€8.98
Incl. 19% VAT

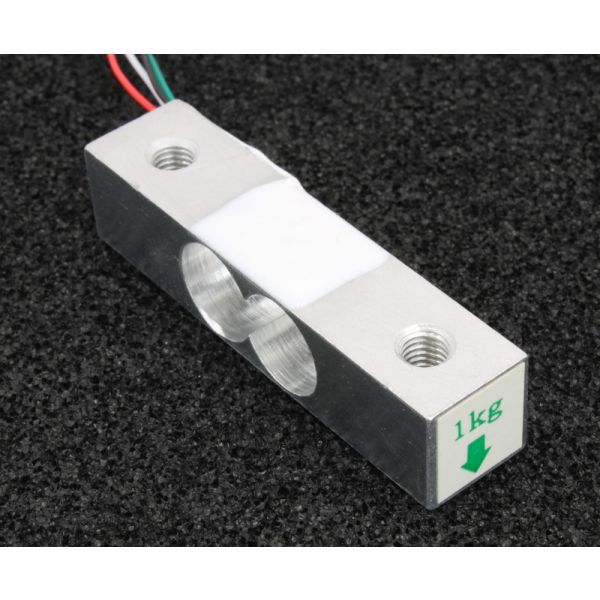

Description / Load Cell 1kg CZL635
This micro load cell is compatible to the Load Cell Bricklet 2.0.
Technical Specifications
| Property | Value |
|---|---|
| Model | CZL635-1kg |
| Measurement Range | 0kg to 1kg |
| Rated Output | 1.0±0.15mV/V |
| Non-Linearity | 0.05%FS |
| Hysteresis | 0.03%FS |
| Repeatability | 0.05%FS |
| Creep | 0.05%FS/10min |
| Temperature Effect on Zero | 0.03%FS/10°C |
| Temperature Effect on Span | 0.02%FS/10°C |
| Zero Balance | ±1.0%FS |
| Input Impedance | 1000±10Ω |
| Output Impedance | 1000±3Ω |
| Insulation Resistance | ≥ 2000MΩ at 100V (DC) |
| Recommended Excitation Voltage | 3V to 10V (DC) |
| Allowed Excitation Voltage | 3V to 18V (DC) |
| Compensated Temperature Range | -10°C to +40°C |
| Operating Temperature Range | -20°C to +60°C |
| Safe Overload | 120%FS |
| Ultimate Overload | 150%FS |
| Connection |
|
| Dimensions (W x D x H) | 55 x 12.7 x 12.7mm (2.17 x 0.5 x 0.5") |
| Weight | 20g |
| Mounting | 2x M5 |
%FS = Percent of Full Scale
