The HS-645MG is a high torque metal gear servo from Hitec with strong three-pole ferrite motor, heavy duty metal gear train and dual ball bearing-supported output shaft. It is compatible to the Servo Bricklet 2.0.
In stock
- SKU
- 6116
€41.98
Incl. 19% VAT
Description / Servo Hitec HS-645MG
The HS-645MG is a high torque metal gear servo from Hitec with strong three-pole ferrite motor, heavy duty metal gear train and dual ball bearing-supported output shaft. It is compatible to the Servo Bricklet 2.0.

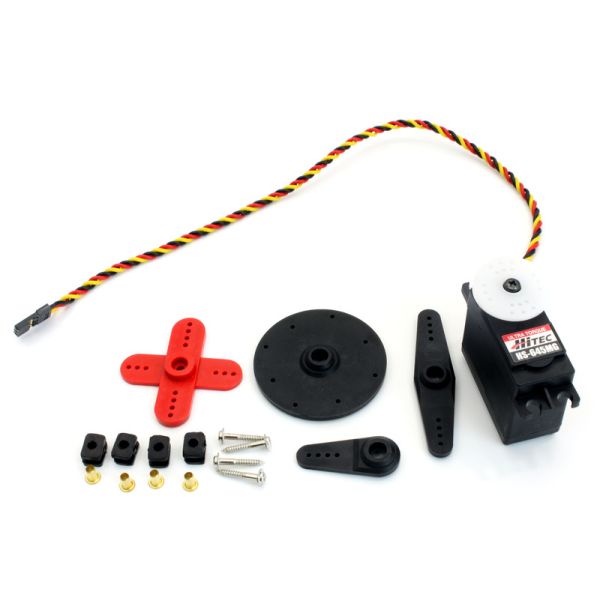

The servo comes including all of the accessories shown in the product photo.
Technical Specifications
| Property | Value |
|---|---|
| Speed (4.8V / 6.0V) | 0.24 / 0.20sec @ 60° |
| Torque (4.8V / 6.0V) | 77Ncm / 96Ncm |
| Idle Current (4.8V / 6.0V) | 8.8mA / 9.1mA |
| Running Current (4.8V / 6.0V) | 350mA / 450mA |
| Stall Current (4.8V / 6.0V) | TBDmA / TBDmA |
| Direction | Clockwise: 1500µsec to 1900µsec |
| Cable Length | 30cm |
| Size | 40 x 20 x 36.5mm |
| Weight | 55g |
